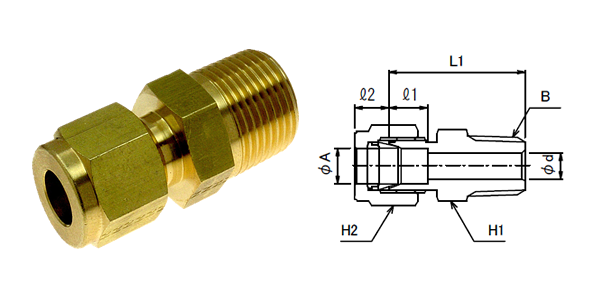

ハーフユニオン

ハーフユニオン

寸法詳細を見る

ご注文の際は以下注文数欄に個数を記入してください。

型式 銅管
外径
A		 管用
ねじ
B		 販売価格
（円）		 注文数
GMC-6M2R-BS
(旧 : GMC-6-1-BS)		 6 1/8 520
GMC-6M4R-BS
(旧 : GMC-6-2-BS)		 6 1/4 520
GMC-6M6R-BS
(旧 : GMC-6-3-BS)		 6 3/8 660
GMC-6M8R-BS
(旧 : GMC-6-4-BS)		 6 1/2 960
GMC-8M2R-BS
(旧 : GMC-8-1-BS)		 8 1/8 590
GMC-8M4R-BS
(旧 : GMC-8-2-BS)		 8 1/4 590
GMC-8M6R-BS
(旧 : GMC-8-3-BS)		 8 3/8 690
GMC-8M8R-BS
(旧 : GMC-8-4-BS)		 8 1/2 980
GMC-10M2R-BS
(旧 : GMC-10-1-BS)		 10 1/8 630
GMC-10M4R-BS
(旧 : GMC-10-2-BS)		 10 1/4 630
GMC-10M6R-BS
(旧 : GMC-10-3-BS)		 10 3/8 720
GMC-10M8R-BS
(旧 : GMC-10-4-BS)		 10 1/2 990
GMC-12M2R-BS
(旧 : GMC-12-1-BS)		 12 1/8 1,170
GMC-12M4R-BS
(旧 : GMC-12-2-BS)		 12 1/4 1,170
GMC-12M6R-BS
(旧 : GMC-12-3-BS)		 12 3/8 1,170
GMC-12M8R-BS
(旧 : GMC-12-4-BS)		 12 1/2 1,190
型式 銅管
外径
A		 管用
ねじ
B		 販売価格
（円）		 注文数
GMC-4T2R-BS
(旧 : GMC-02-1-BS)		 6.35 1/8 520
GMC-4T4R-BS
(旧 : GMC-02-2-BS)		 6.35 1/4 520
GMC-4T6R-BS
(旧 : GMC-02-3-BS)		 6.35 3/8 660
GMC-4T8R-BS
(旧 : GMC-02-4-BS)		 6.35 1/2 960
GMC-6T2R-BS
(旧 : GMC-03-1-BS)		 9.53 1/8 630
GMC-6T4R-BS
(旧 : GMC-03-2-BS)		 9.53 1/4 630
GMC-6T6R-BS
(旧 : GMC-03-3-BS)		 9.53 3/8 720
GMC-6T8R-BS
(旧 : GMC-03-4-BS)		 9.53 1/2 990
GMC-8T2R-BS
(旧 : GMC-04-1-BS)		 12.7 1/8 1,170
GMC-8T4R-BS
(旧 : GMC-04-2-BS)		 12.7 1/4 1,170
GMC-8T6R-BS
(旧 : GMC-04-3-BS)		 12.7 3/8 1,170
GMC-8T8R-BS
(旧 : GMC-04-4-BS)		 12.7 1/2 1,190
